As the core equipment of photovoltaic power generation systems, the inverter is used to convert the direct current generated by photovoltaic modules into alternating current that meets the requirements of the load or power grid. It is one of the important system balance components in photovoltaic systems

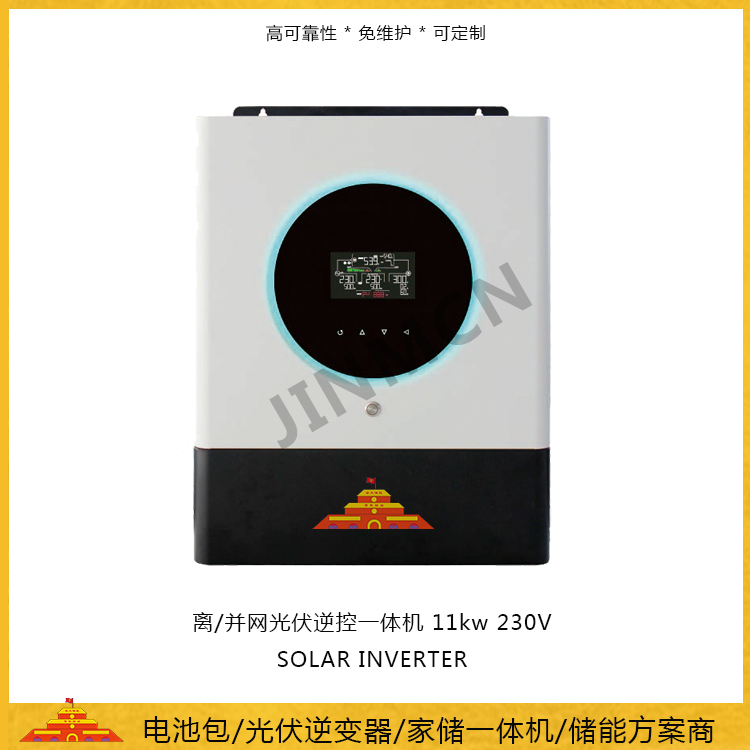

The reverse control integrated machine, as the name suggests, is a device that combines the controller and inverter. It can control the solar panel to charge the battery and use the battery to supply power to the inverter, providing overcharging and discharging protection for the battery. It can also convert direct current into alternating current. Its advantages are also very obvious. The combination of the controller and inverter can save installation space and transportation costs even more, In addition, there is the function of wall mounted installation, which makes wiring easier for the entire solar power supply system, adding more possibilities for the application of solar power supply systems, such as RVs and home solar power generation

Municipal electricity priority: Municipal electricity priority is given to power supply. When municipal electricity cannot be supplied, photovoltaic and battery power supply are synchronized to the load;

Photovoltaic priority: Photovoltaic priority is given to power supply, and when there is insufficient light, the municipal power supply is synchronized to supply power to the load; When photovoltaic and mains power cannot supply power to the load, the battery inverts to supply power to the load;

SBU mode: Photovoltaic power is given priority, and when the photovoltaic power is insufficient, the battery synchronously supplies power to the load; When both photovoltaic and battery power cannot be supplied, the mains power supplies the load.

technical characteristics

1. Off grid/grid connected reverse control integrated machine, supporting photovoltaic, mains, and battery access

2. Dual output, intelligent load management

3. The maximum photovoltaic input current can reach 27A

4. MPPT input voltage range 90-450V

5. RGB color bar status display

6. Built in WI-FI monitoring module (Android/iOS app)

7. BMS communication interface (RS485. CAN-BUS. RS232)

8. Fan replacement is simple and fast

9. Independent battery design

10. Configurable output power supply priority and time period

11. Compatible with mains or generators, with a maximum of 6 parallel units
