JMX金美微储 10F3.8V 0613 锂超容规格书56.pdf

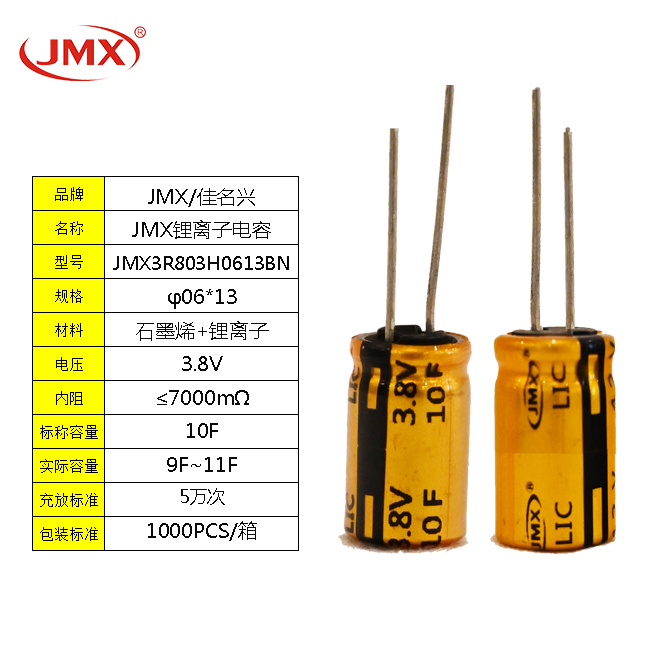

JINMCN3R8LL106C0613
Capacity:10F
Pressure resistance:3.8V

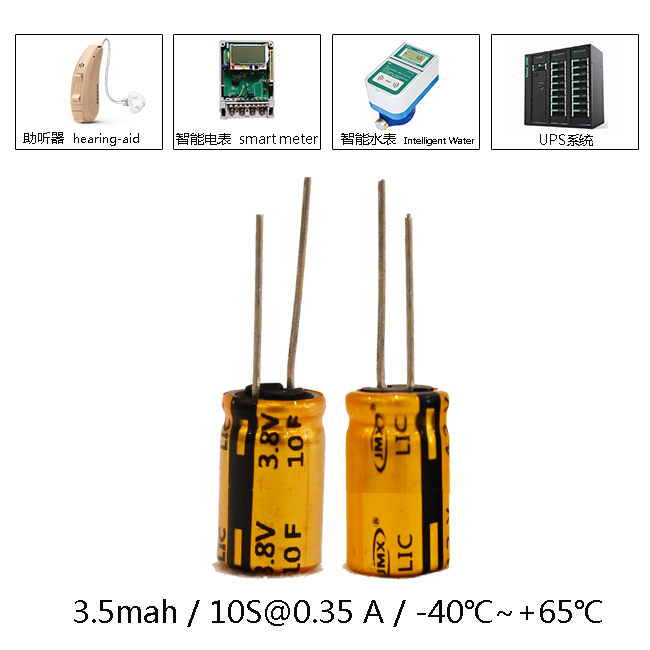

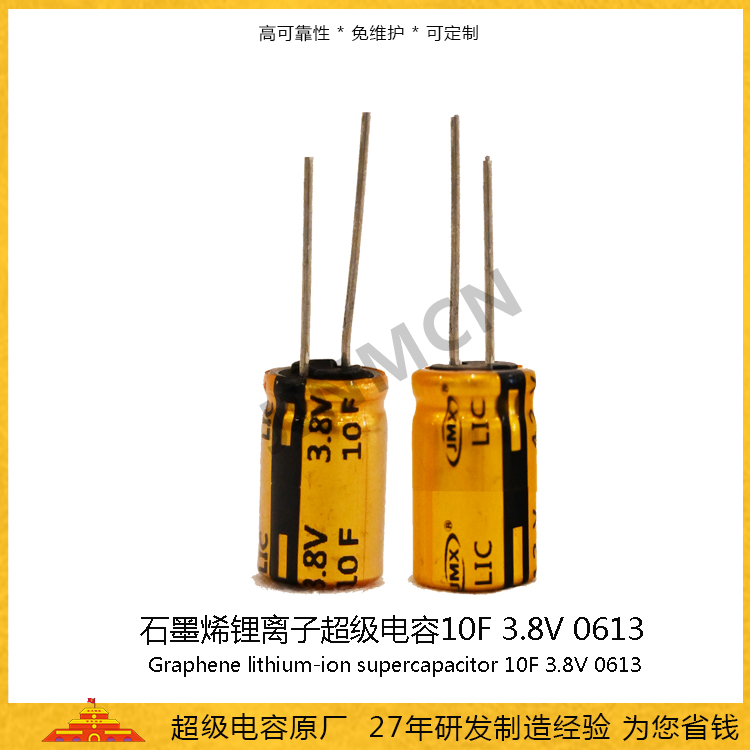

Graphene lithium-ion supercapacitors have the energy density of lithium-ion batteries, and the fast charging and discharging characteristics of graphene supercapacitors can directly replace lithium-ion batteries. They can support instantaneous output of 0.35A, which is superior to traditional lithium-ion batteries and can meet more demanding application environments
容量capacity | 10F |
电压voltage | 3.8V |
误差Tolerance | ±20% |
温度temperature | -20℃~+65℃ 85℃@3.5V |
寿命service life | 50000cycle |
漏电流 Leakage current(24hrs/uA) | 5 |
最大峰值电流Maximum peak current | 0.35A |

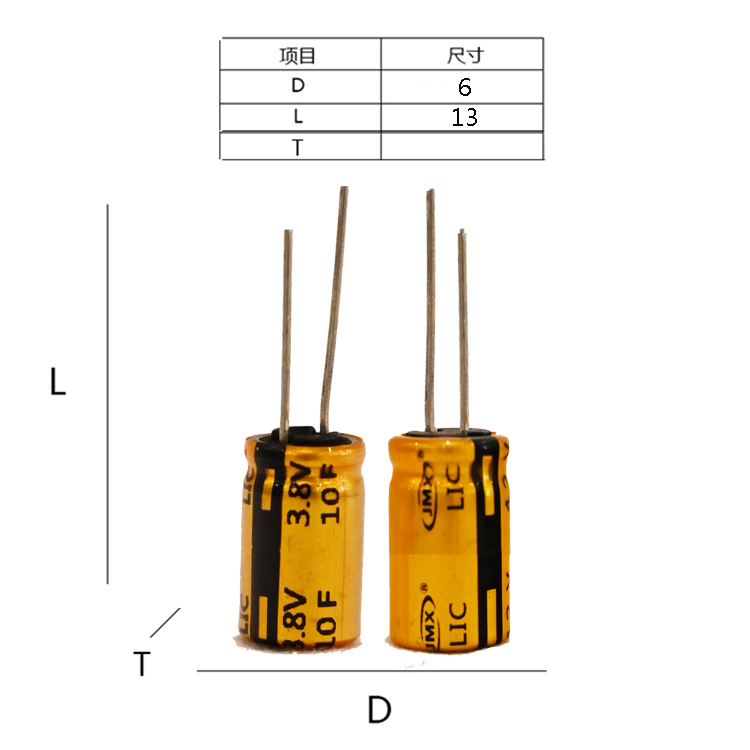

尺寸 size | 6*13MM P2.5MM |
